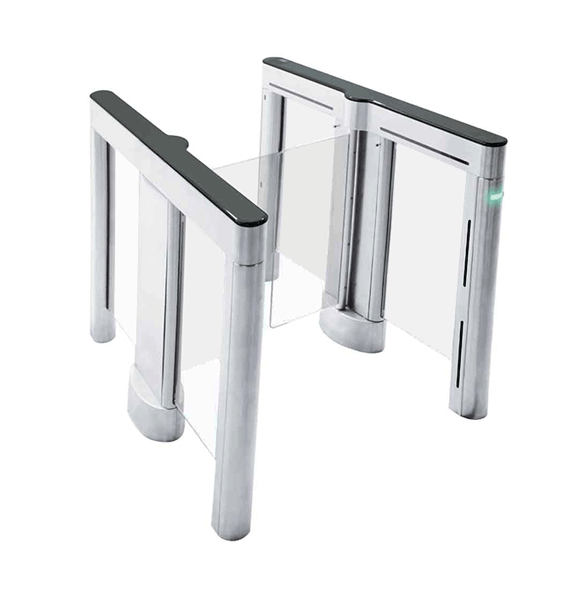

Optical Turnstile - Clear Bi-Parting Barriers

  • Optical Turnstile - Clear Bi-Parting Barriers
  • Waist High Optical Turnstile, with Clear Panels (TG-ALV-U5000S1)
  • Waist High Optical Turnstile, with Clear Panels (TG-ALV-U5000S2)
  • Image 4
  • Image 5
  • Image 6

Product Description

This beautiful optical turnstile with clear bi-parting barriers has thin cabinets and the most elegant motorized barrier optical turnstile available.

Its slim end cabinets are only 3.8" wide. The turnstile's rounded lines and clear materials enhance the look of any lobby or entrance area and provide excellent sight lines for attendants or guards in case of security events or emergencies.

The compact floor footprint allows more lanes to fit in a smaller space. Center expansion cabinets have the same dimensions as end cabinets, allowing space saving multi-lane configurations whether providing standard lane width of 28" passage width or an ADA-compliant 36" passage widths.

Clear bi-parting barrier panels may be ordered in three heights: 35", 46" or 69" in order to best match security and operational requirements.

When an authorized user presents a valid credential, the barriers open quickly and precisely, moving 'away' from the user in the same direction the user is travelling.

Panel movement is controlled through a closed loop position control which monitors the panel position every 1/1000 of a second. This provides quick, precise and quiet panel operation. As the user passes through the turnstile, the barriers smoothly return to the closed position (ready for the next valid credential) or, if another credential has been presented, the panels stay open for the next users’ passage. This feature is called “stacking” of credentials which supports high user traffic.

We can also provide matching Posts with Clear Infill Barriers to fill-in space on the left or right sides of these turnstiles when required. All clear panels on both the turnstiles and barriers can have your logo etched for a nominal charge.


This security turnstile is highly intuitive for users and staff. Illuminated status icons on the lid and audible sounds prompt users, and provide clear notification of card acceptance or rejection. The various alarm conditions (e.g., unauthorized entry; loitering in lane; tailgating, etc.) are differentiated by light flashing patterns and through the use of sounds which vary, depending on the alarm type and direction. The turnstile comes with standard sounds or users can substitute their own custom audio sounds.

In addition, there are options for custom color lids (which is normally "Black, Starry Night").

Another popular option is for a dynamic LED light indicator of lane status.  The light, along the top inside of the cabinet, alternates Blue, Green and Red:

Blue for "closed and ready to swipe card,"

Green for either the "card swiped successfully or the lane is in a free passage status,"

Red when a "bad card swiped,"

Fashing Red when an alarm is triggered.

Ask for volume pricing and request a freight quote to your location.

Product Features

Elegant Appearance
Bi-Parting Clear Barriers
Etched Logo Option
Access Control Compatible
36" Lane or 28" Lane
Posts with Clear Infill
