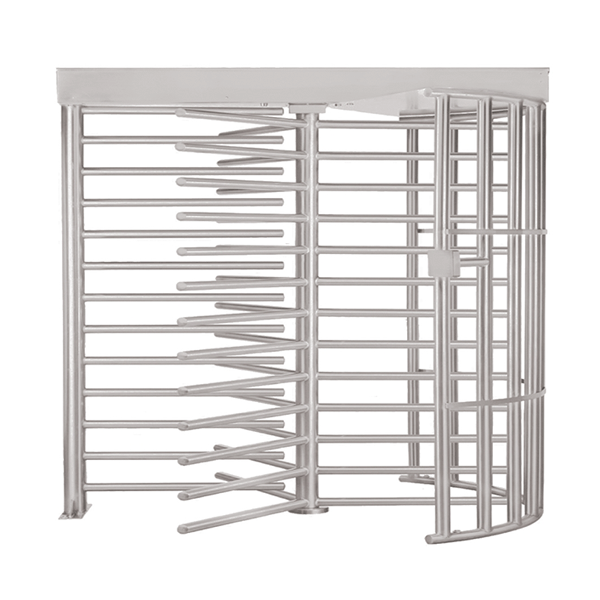

Wide 47" Passageway Full Height Turnstile

  • Wide 47" Passageway Full Height Turnstile
  • Image 2

Product Description

The longer 47" arms create a larger passageway. This model comes in both manual and electric lock control versions.

The electric model is bi-directional and works with any access control system or push button. The turnstile can be ordered with card reader mounting plates, and each rotation direction can be configured as fail-safe or fail-lock.

When a valid credential is presented, the turnstile unlocks, allowing a single controlled rotation in the requested direction. Unauthorized entries, or attempts to tailgate on an authorized entry, are rejected.

Both the manual and electric lock versions have built in key override controls and each direction can be adjusted for free passage, controlled passage or no passage.


  • Welded steel construction with no exposed bolts or fasteners

  • Stainless steel top channel cover and internal parts

  • High quality sealed and covered bearings

  • Splined connection between the rotating section and  top channel assembly provides a precision fit that minimizes play

  • Rugged electronics with full-featured turnstile controller, conformal coated for enhanced weatherization protection

  • One-to-one passage control deters tailgating

  • Independent fail-safe or fail-lock operation

  • Speed control to provide a controlled, safe rotation

  • Automatic self-centering prevents over or under travel of rotating section

  • Built-in key override controls to adjust open or closed status

  • Rugged turnstile controller integrates with any access control system

  • Flexible credential reader attachment and mounting plate allows use of existing readers

  • Dedicated fire input and various other available I/O

  • Anti-entrapment design

The built-in speed control self-adjusts to the pushing force of the user. Even when a user pushes hard on the turnstile arms, the speed of rotation is controlled. This increases safety and reduces the chance of a rapidly spinning rotating section catching a user’s heel.
In addition to controlling the rotation speed, the turnstile's speed control also greatly reduces kickback of the rotating section toward the user when the turnstile re-locks. After each passage, the rotating section smoothly returns to the home position and locks in place, ready for the next user. The unique design of this turnstile also makes it mechanically impossible for a user to get locked inside the turnstile.
Our electric turnstiles are configured for fail-lock in the entrance direction and fail-safe in the exit direction. When power is off this prevents people from entering, but allows personnel to exit.  This can be varied per user preference.

Product Features

47" Arm Passageway
Larger Passageway Area
Galvanized, or Stainless
Powder Coated Color
Electric or Manual
Key Lock Overrides
