Deep Transaction Drawer, Speaker & Microphone

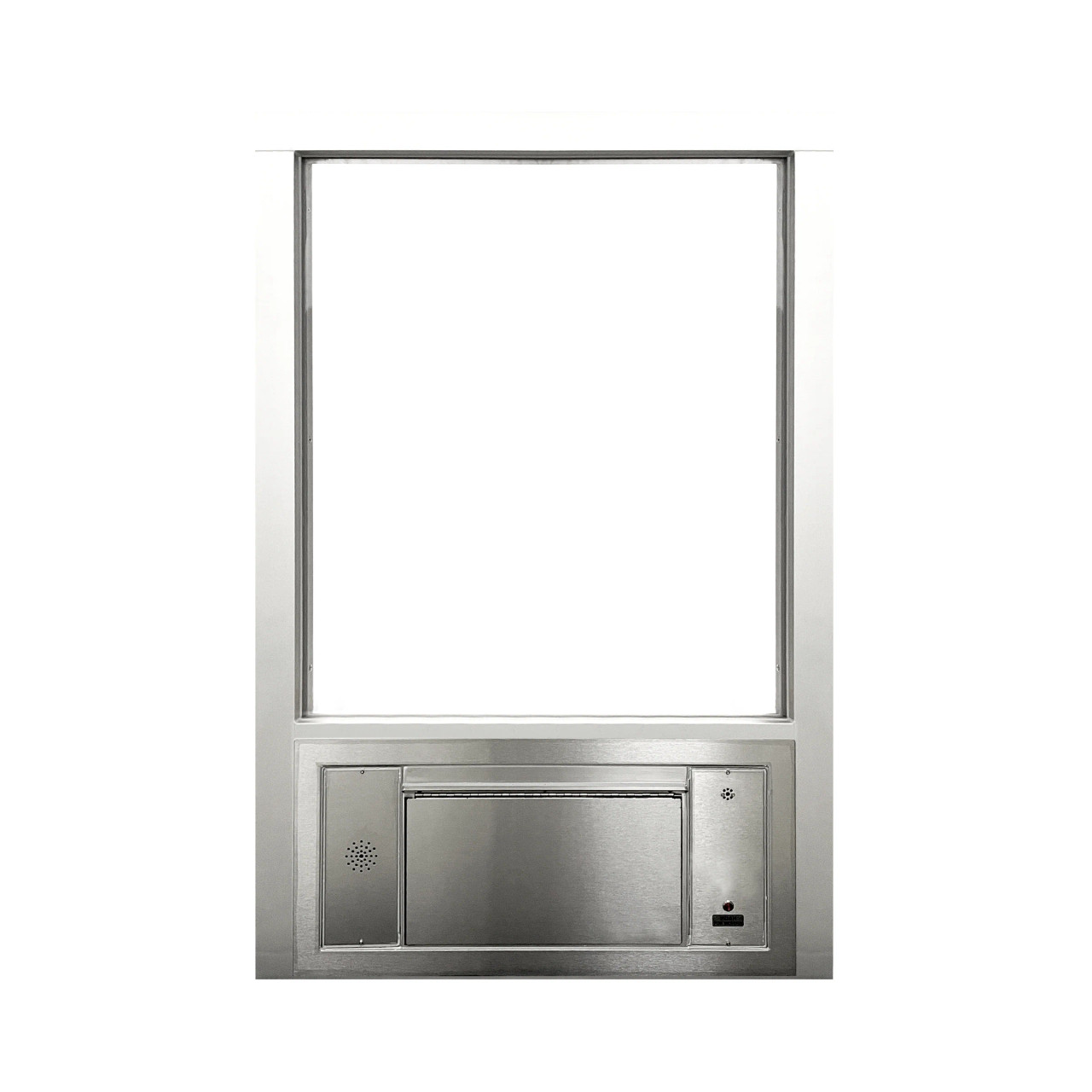

This heavy-duty transaction station combines a large transfer drawer, fixed security window, and integrated speaker and microphone system for secure drive-through and walk-up service. Designed for banks, pharmacies, cashier stations, security facilities, and other controlled service locations, it allows employees to exchange cash, documents, packages, and larger items while maintaining a physical barrier between staff and customers.

The stainless steel transaction drawer provides a generous transfer area with a self-locking closure. An external customer speaker and microphone connect to the attendant's intercom system for clear two-way communication. The assembly includes a durable aluminum frame and arrives prewired, tested, and ready for installation.

Standard glazing is 1/4" tempered safety glass, with Level 1 and Level 3 bullet-resistant options available for facilities requiring additional protection. The unit is designed for demanding commercial environments and is available in a weather-resistant configuration for drive-through applications.

Technical Specifications

• Product Type: Transaction Window with Transfer Drawer
• Overall Dimensions: 32-1/4" W × 49-1/4" H
• Rough Opening: 32-5/8" W × 49-5/8" H
• Frame Depth: 4-1/2"
• Frame Construction: Aluminum
• Drawer Construction: Heavy-Duty Stainless Steel
• Transfer Area: 13" W × 7-1/2" H × 19-1/4" D
• Drawer Extension: 17-5/8"
• Drawer Closure: Self-Locking
• Communication: External Speaker and Microphone with Intercom
• Standard Glazing: 1/4" Tempered Safety Glass
• Security Options: Level 1 or Level 3 Bullet-Resistant Glazing
• Installation: Drive-Through or Protected Walk-Up Service
• Assembly: Prewired and Factory Tested
