Multi-Advanced 2-Reader Controller

The AC-225IP-B Intelligent 2-Reader Expandable Networked Access Controller is powered by Rosslare’s AxTraxNG™ or AxTraxPro™ server to deliver full featured access control and automation capability via a 10/100 ethernet port. The AC-225IP-B (TCP/IP) and AC-225-B (RS-485) control panels have one expansion slot for mounting one MD unit. The expansion modules MD-D02B (2 readers, 4 outputs, 4 inputs), and MD-IO84B (8 EOL supervised inputs and 4 outputs) are easy to mount and can be added in under one minute.

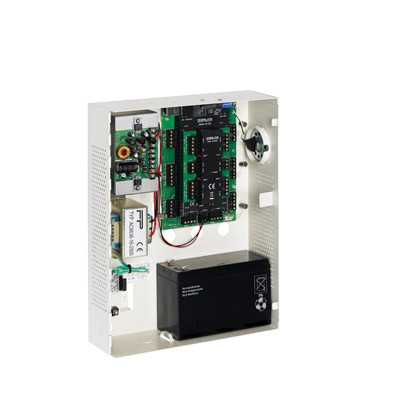

Rosslare offers a variety of ordering options, including DIN-panel only and set up on an ME-1015 advanced power supply lockable enclosure. The system provides an ideal, modular, and expandable solution for commercial and institutional needs.

GENERAL DESCRIPTION AC-225IP-B and AC-225-B are professional grade access controllers that have advanced online and offline logic capabilities, using non-volatile memory in case of total power loss. The panels support 30,000 users, 128 access areas, 128 access groups, 128 time zones, 64 holidays, and 32 panel automation links. They feature 2 readers, 4 outputs, 4 inputs, buzzer indicator output, and LED indicators for TCP/IP, serial bus, output status. The panels feature a secondary RS-232 serial port enabling a PC connection via a standard serial COM port. The reader ports support industry standard Wiegand inputs from 26-Bit to 64-Bit and 8 different keypad formats. When connected to AxTraxNG or AxTraxPro Access Control Management Software and Microsoft® Windows® operating systems, IP networks of up to 1023 panels may be achieved with the AC-225IP.

MAIN FEATURES ▪ Full online and offline operation ▪ Supports for 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128 time zones, 64 holidays and 32 Smart Links for automation ▪ 20,000 nonvolatile, FIFO, records the event log while offline ▪ Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD D02B 2-Reader expansion for additional 2 readers with 4 inputs, 4 outputs ▪ Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 24 hours when total power loss (no batteries to replace) ▪ Supports wide range of Wiegand reader formats, PIN keypad formats, and logic options to support wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors.
