Networked Face & Fingerprint, RFID w/Touchscreen Reader - Rosslare

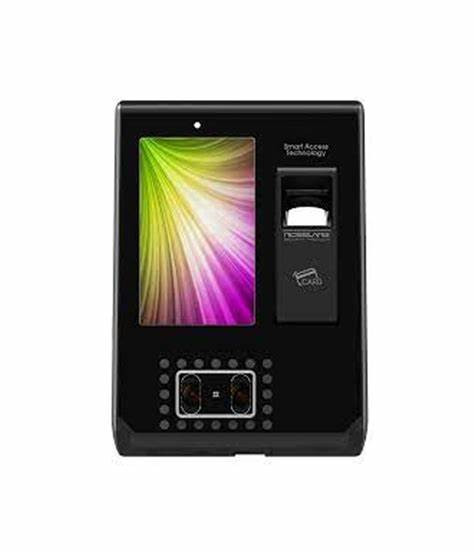

The AY-B9350 is a high-performance Face and Fingerprint recognition reader with MIFARE® 13.56 MHz and EM 125 kHz card reader. It has an Android OS with a touch LCD. The dual IR/RGB camera has a motorized tilt for face finding, making the unit user friendly regardless of the height of the user. Advanced features include support for 100,000 fingerprint templates, 10,000 (1:1) & 2,000 (1:N) face templates, and innovative algorithms with liveness check. Connection is easy with TCP/IP, RS-485, Wiegand in/out (26-/34-Bit). The terminal can be set up easily using the AxTraxNG Client software. Alternatively, it is compatible with Rosslare’s standalone RosslareBio 9000 management software that is perfect for interfacing with existing third-party systems. This product features the latest design and engineering to achieve a best-in class solution.

GENERAL DESCRIPTION
The AY-B9350 is suitable for 1:N applications with up to 100,000 Fingerprint templates (50,000 Fingers) or 1:1 Matching operation. In addition, the AY-B9350 has built-in face recognition capability, and is an RFID (MIFARE and EM) card reader. The user can choose any combination of these authentication methods. The Biometric Server application for Windows allows easy and intuitive enrollment and template distribution using AxTraxNG™ version 27.7.x.x and above or by RosslareBio 9000 server/client solution to support networks of up to 2000 readers, making it ideal for small and big installations and allowing maximum flexibility for securing a growing enterprise. Each AY-B9350 biometric/face reader unit features connectivity via TCP/IP, RS-485, and Wiegand.

MAIN FEATURES
 Multi-factor Authentication: face, card, fingerprint and pin code
 Advanced optical sensor with fingerprint liveness check algorithms prevent spoofing.
 Large capacity for 100,000 templates – 1:Many and support for 1:1 Matching Mode
 High performance CPU and memory for high speed validation (up to 1 second)
 Built-in TCP/IP, RS-485, Wiegand output connectivity
 Dual technology – MIFARE (13.56 MHz) + EM (125 kHz) RFID card reader
 Colored dual camera, for ensuring best face authentication (IR and Visible light cams)
 Non-volatile event log of up to 1,000,000 entries
 Wide thermal operating range (-20°C to 60°C)
 Built-in tamper and buzzer
 Modern design that blends into almost any architectural challenge

SOFTWARE SOLUTION
 AxTraxNG: Easy to install and operate using Rosslare AxTraxNG™ Server for Windows for managing user data and template distribution (many languages)
 RosslareBio 9000: Easy-to-install and operate server for Windows OS that enables managing user data and template distribution. Up to 16 remote client enrollment stations for enterprise applications
