Mullion Prox Reader

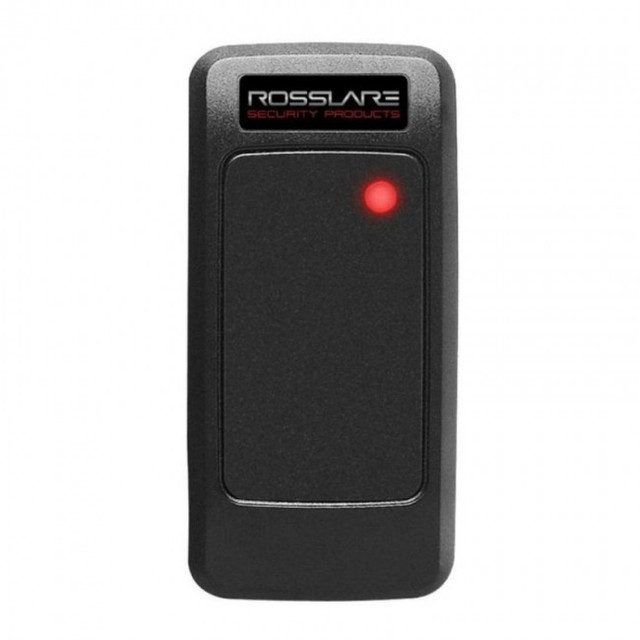

Rosslare's AY-x12C is a series of powerful RFID proximity card readers of EM 4102 125-kHz cards and tags. The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water resistant casing, the AY-x12C are equally suited for indoor and outdoor use.

SIZE:3.2" H x 1.06" W x .05" D

Four other sizes available with similar form factor.

GENERAL DESCRIPTION The AY-x12C with selectable output formats (Clock & Data or Wiegand 26-Bit) reduce stocking costs, while offering various control options such as hold, buzzer and multi-LED color control. The units are designed for easy mounting with hidden screws (security screws may be used to enhance strength). Optical tamper adds protection against wall removal, and the buzzer adds audible RFID card read notification. LED control provides system based information to the end user.

MAIN FEATURES  Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data  Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)  Wide range operating voltage: 5 to 16 VDC  45 cm (18 in.) pigtail cable

PROFESSIONAL GRADE FEATURES  RF Modulation: ASK at 125 kHz  Internal sounder with external control option  Tri-color LED with external control inputs  External reader hold control  Optical wall tamper detection  Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications  Made of tough polycarbonate UV-resistant plastic  Comes with mounting template for easier installation
