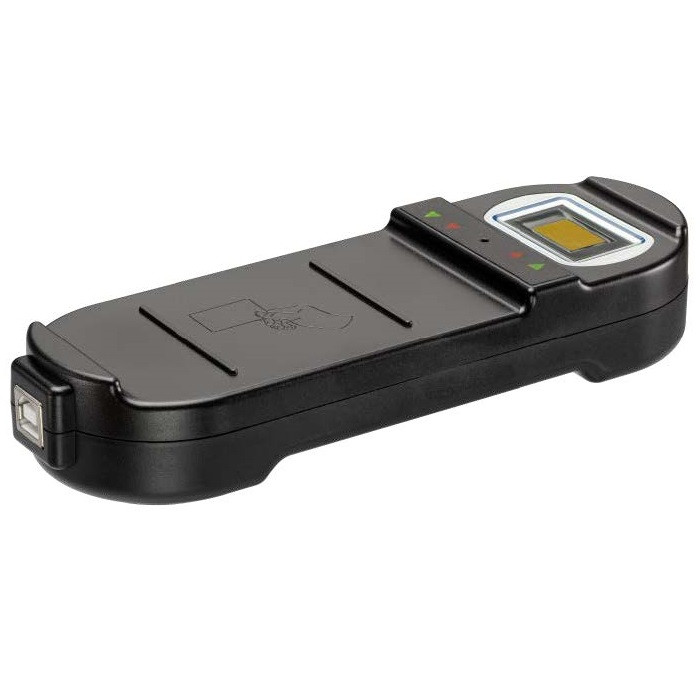

Mifare Classic & Fingerprint Desktop Programmer

Rosslare's CP-R26 is a sophisticated high-security desktop programmer unit for custom MIFARE Classic® EV1 ISO 14443A contactless card applications. This lightweight, sleek designed desktop unit offers high flexibility, easy to use, card programming, fingerprint enrollment and management via Rosslare's PC software AS-B01.

GENERAL DESCRIPTION The CP-R26 is a universal desktop card programmer for custom MIFARE Classic EV1 contactless card applications, specifically sector readers in Access Control and other systems, where high security or data manipulation is a priority. CP-R26 is also compatible with Rosslare’s smart Match-On-Cards fingerprint reader family. Cards are placed on the unit’s card tray, and can be read, verified, and programmed using the AS-B01 accompanied software. The CP-R26 is controlled by Rosslare's AS-B01 card programming PC Software connected via an encrypted link, it also incorporates the most up-to date 64-Bit software and firmware for higher security. Using CP-R26 and its accompanying software provides high quality MIFARE Classic EV1 Card read/write functionality as well as master cards creation for easy and fast reader configuration of both sector and fingerprint readers. Four LEDs and sounder indicate current activity (read/verify/write) as well as guides the user in the fingerprint enrollment process.

MAIN FEATURES  Provides content and writing definitions for the sectors  Creates master cards for easy and fast reader configuration  Allows the user to read, program, and verify cards quickly and easily  USB 2.0 computer connection (identified automatically, no drivers needed)  LEDs and sounder indicate different activities, including user guidance and success or error indications  Cards types supported: MIFARE Classic EV1 ISO 14443A  Slim and lightwe
