Long Range Reader for Vehicle Gates

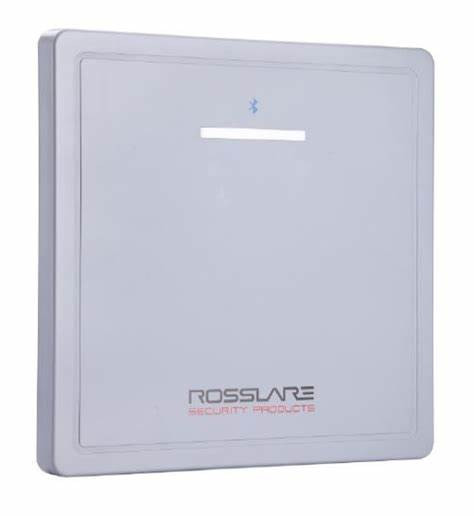

The AY-U920BT is a unique UHF-RFID credential reader with Rosslare BLE-ID™ credential read capability (for both iOS and Android). Installers can configure a wide range of operating parameters using our Rosslare BLE-Admin™ app. AY-U920BT brings a new level of convenience and productivity. The UHF read mode is ISO18000-6C (EPC GEN2) compliant. The reader is suitable for outdoor use in a wide range of RFID applications such as access control, transport management, vehicle management, car parking, and production process control, and works with almost every third-party controller. Choose Rosslare for professional “Security that lasts”.

READS Cell phone App (iOS and Android), Hard Tags, Window Tags, RFID Cards.

REQUIRES: Rosslare Controller and AxTraxPRO software.

GENERAL DESCRIPTION By reading both UHF and Bluetooth (BLE), the reader enables system integrators to develop new solutions, such as multi-factor authentication. The AY-U920BT can be configured to read up to 70 credentials within the read range, and to buffer the output to the host controller in Wiegand 26-Bit to 64-Bit or SIA OSDP. The reader comes with an installation bracket kit for pole mounting, a 5-m-long 10-wire cable, and a switching power supply. The RS-485 OSDP wiring allows a maximum cable distance of 1000 m (3280 ft), and the Wiegand wiring allows a maximum cable distance to the host controller of 150 m (492 ft).

MAIN FEATURES  MD-81 functionality built in  Wide range of UHF credential form factors available  UHF read range up to 12 m (39 ft)  Supports Bluetooth communication for Rosslare BLE-ID™ smartphone apps for Android and iOS  Can read up to 10 credentials per second or down to 1 credential per second (programmable)  IP65 for indoor and outdoor use  RGB LED used for operational indication

OPTION: The AY-U915BT has a smaller form factor and shorter 19 feet read distance for less demanding applications.

PROFESSIONAL GRADE FEATURES  Supports OSDP reader profile according to v2.1.7 standard from Security Industry Association (SIA)  Supports mobile Admin app for parameter configuration capability
