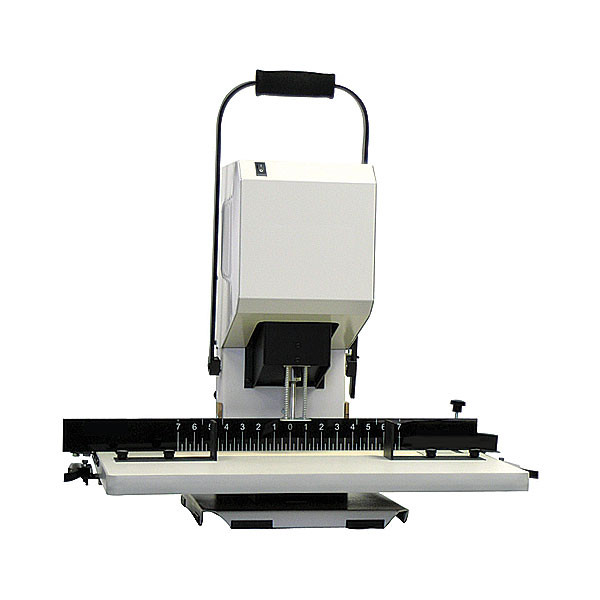

Electric Paper Drill, 1-Spindle, Movable Table

The Electric Paper Drill is a heavy-duty single-spindle drilling machine designed for producing accurate, consistent holes in large stacks of paper. It is ideal for commercial print shops, binderies, copy centers, and businesses requiring repetitive drilling for binding and document preparation.

See Spec Sheet

This machine features a movable worktable that allows multiple holes to be drilled without repositioning the paper stack. Four interchangeable hole-pattern templates are included, with custom templates available for specialized hole spacing and drilling requirements.

The machine operates using a 1/2 HP electric motor on 115V power and can drill through approximately 500 sheets of copy paper. Drill bits are available in diameters from 1/8" to 1/2", allowing operators to select the appropriate hole size for different applications.

The E-Z Glide table system moves smoothly between drilling positions and locks into place for accurate hole alignment. Release levers on both sides accommodate right- or left-handed operation. Built for commercial use, the machine features a durable construction, an 18" x 12" worktable, a compact 12" x 13-1/2" base footprint, and a weight of 66 lbs.

Additional Technical Specifications

Motor: 1/2 HP
Electrical Requirement: 115V
Drilling Capacity: Approximately 500 Sheets
Drill Bit Diameters: 1/8"–1/2"
Worktable: 18" x 12"
Base Footprint: 12" x 13-1/2"
Machine Weight: 66 lbs.
Hole Templates: 4 Included; Custom Available
Table Release: Left- or Right-Handed
